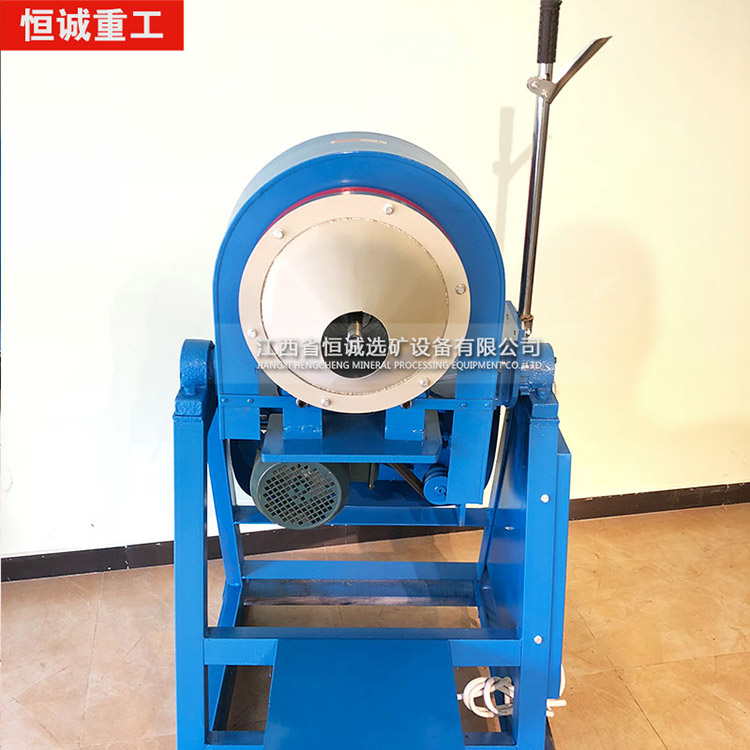

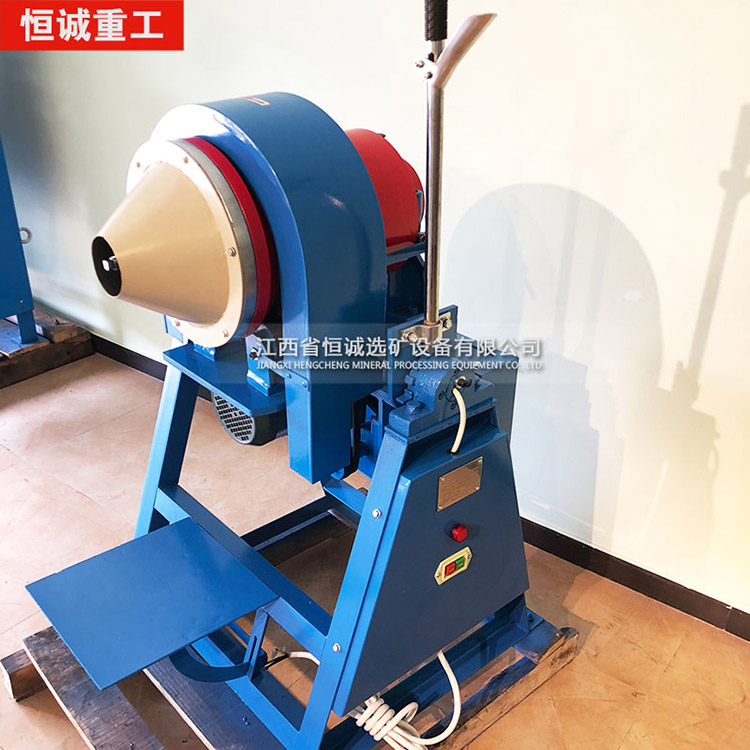

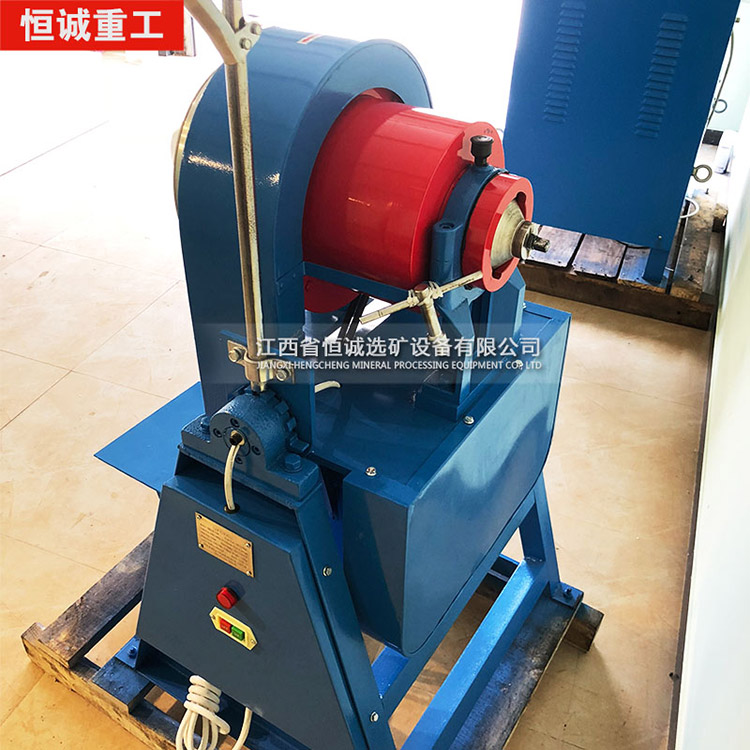

XMB Rod Mill
browse：time
XMB series rod ball mill is an efficient laboratory grinding equipment for wet grinding of ore or other materials. Steel balls can be used as grinding medium instead of steel rods. In rod grinding operation, particle sizes of final product are relatively uniform and ore overgrinding can be eliminated. Generally speaking, lab rod mill is commonly used as a grinder for mineral feasibility study and for heavy concentrate reduction.
Product Details
XMB Rod Mill is applicable to lab. wet fine grinding of ore and other materials. In rod grinding, fine product particle fractions are relatively uniform with rare occurrence of over grinding and high efficiency. In general, rod grinding is introduced for test on ore for separation and manual fine grinding of placer materials.
The grinding equipment, a large amount of feeding, discharging, electric cylinder control, no manual, can also be replaced by steel balls to use steel bars/ rods.
Advantages
1.Exquisite design, small and compact structure;
2.Uniform discharging size and overgrinding can effectively be prevented;
3.High efficiency and easy operation.
Product Parameters
| 项目item | XMB-160×200 | XMB-200×240 | XMB-240×300 | 单位unit | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 筒体（直径×长度）Cylinder | 160×200 | 200×240 | 240×300 | mm | ||||||||
| 容积volume | 4.02 | 7.5 | 13.57 | L | ||||||||
| 磨矿量Grinding quantity | ≤250 | ≤1000 | ≤4000 | g | ||||||||
| 给矿粒度Feeding size | ≤2 | ≤2 | ≤3 | mm | ||||||||
| 产物粒度Discharge size | ≥0.074 | ≥0.074 | ≥0.074 | mm | ||||||||
| 筒体转速Cylinder speed | 120 | 110 | 96 | r/min | ||||||||
| 电动机Motor | 型号model | A02-7114 | y801-4 | y801-4 | ||||||||
| 电压voltage | 380 | v | ||||||||||
| 功率power | 0.55 | 0.75 | 1.1 | kw | ||||||||
| 转速speed | 1400 | 1390 | 1390 | r/min | ||||||||
| 磨矿介质Grinding medium | 钢棒Steel bar | 直径diameter | 18 | 20 | 15 | 18 | 22 | 15 | 18 | 22 | mm | |
| 长度length | 185 | 225 | 286 | mm | ||||||||
| 数量quantity | 10 | 9 | 17 | 9 | 9 | 33 | 13 | 6 | 根/pcs | |||
| 重量weight | 3.55 | 4.09 | 4.9 | 4.2 | 4.9 | 12.79 | 7.48 | 5.02 | kg | |||
| 钢球steel ball | 直径diameter | 20 | 25 | 30 | 20 | 25 | 30 | 20 | 25 | 30 | mm | |
| 数量quantity | 100 | 26 | 5 | 136 | 52 | 29 | 290 | 115 | 37 | 个/pcs | ||
| 重量weight | 3.31 | 1.70 | 0.56 | 4.4 | 3.3 | 3.7 | 9.57 | 7.37 | 4.1 | kg | ||
| 重量weight | 90 | 155 | 160 | kg | ||||||||
| 外形尺寸（长×宽×高）Dimension | 580×620×1180 | 580×620×1180 | 640×690×1320 | mm | ||||||||
