Vibrating Feeder
browse：time

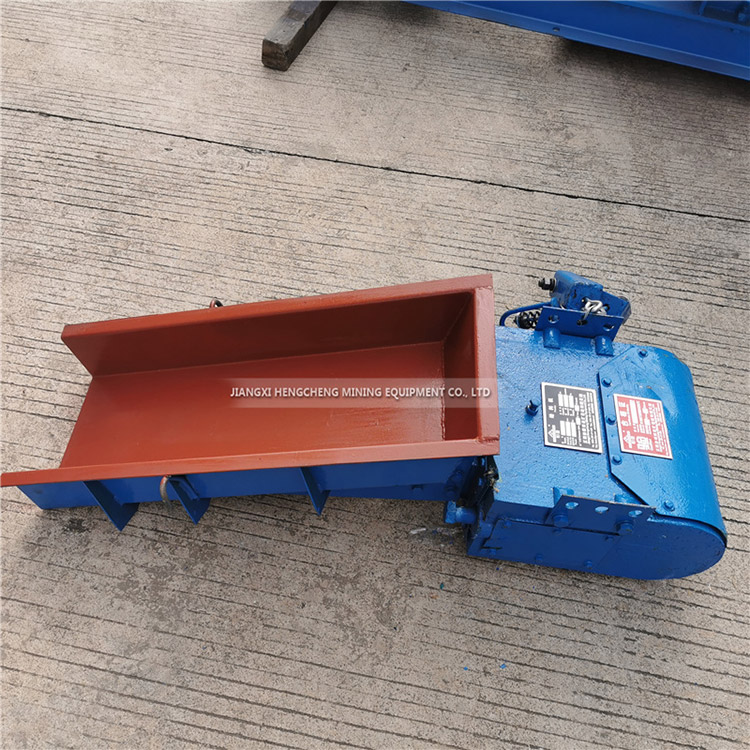

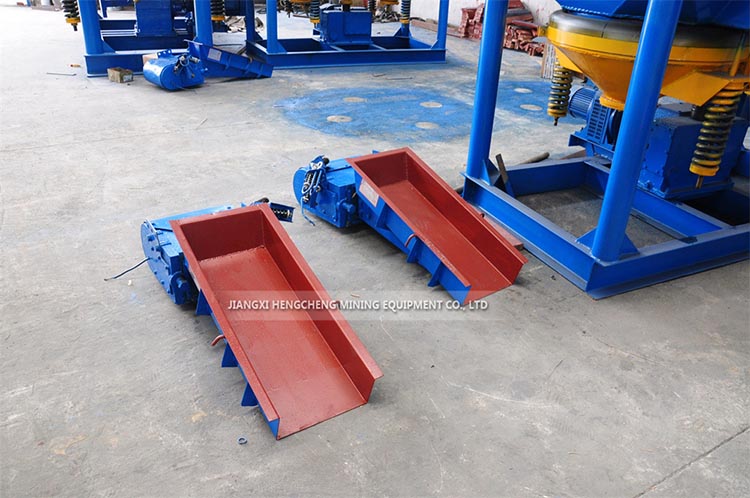

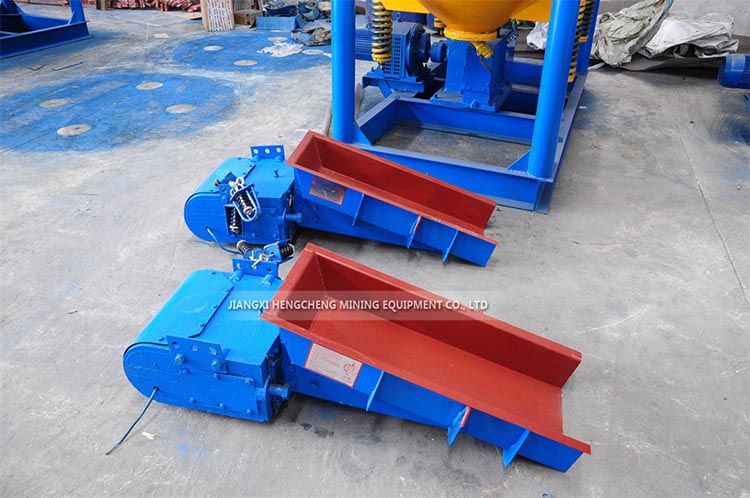

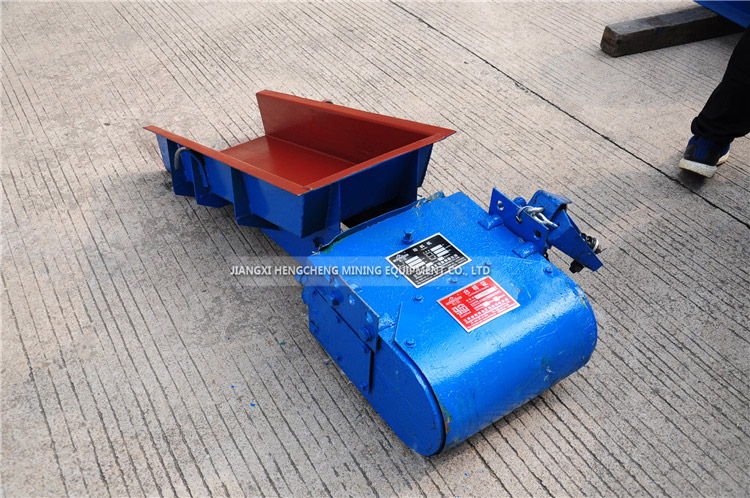

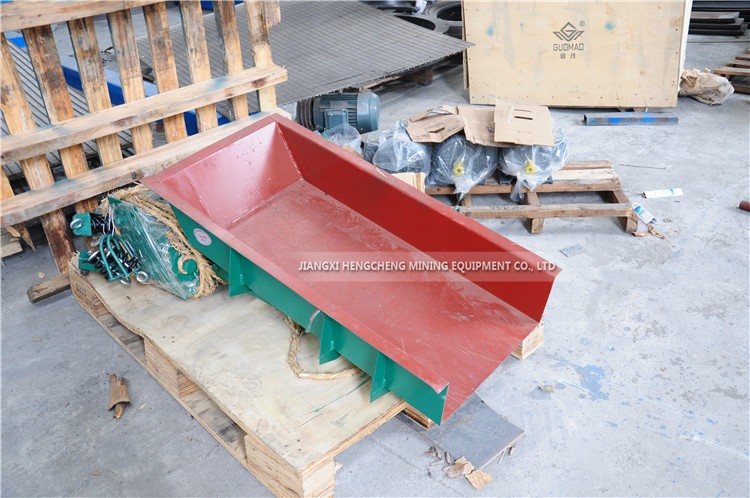

GZ electromagnetic vibrating feeder is a device, which could feed those lump, granular and powder material into affected device from storage silo or hooper.
Product Details
It could speedless adjust the feeding amount, and realized that production lines centralized & automatic controlled. This machine is small, light weight, easy installation, no moving parts, no need to moisture, easy maintanence,high operating frequency, low power consumption. It is widely applied in mine, metallurgy, coal, light industry, power industry, machinery, food industry,etc. This machine has small amplitude, those sticky or wet powder material is not suitable to use it.
How to adjust the feeding amount: change the power current size,or change the slope of discharge.
Product Parameters
| Model | Capacity (t/h) | Feed size (≤mm) | Double amplitude (mm) | Voltage （V） | Power(KW) | Weight (Kg) | Dimension (mm) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0° | －10º | L1 | L2 | L3 | L4 | H1 | H2 | ||||||
| GZ0 | 5 | 7 | 50 | 1.75 | 220 | 0.06 | 75 | 910 | 600 | 200 | 550 | 100 | 360 |
| GZ1 | 10 | 14 | 50 | 1.75 | 220 | 0.15 | 146 | 1175 | 800 | 310 | 660 | 120 | 450 |
| GZ2 | 25 | 35 | 75 | 1.75 | 220 | 0.25 | 217 | 1325 | 900 | 311 | 790 | 150 | 520 |
| GZ3 | 35 | 50 | 85 | 1.75 | 220 | 0.35 | 300 | 1460 | 1000 | 350 | 870 | 175 | 580 |
| GZ4 | 50 | 70 | 100 | 1.75 | 220 | 0.45 | 412 | 1615 | 1100 | 413 | 960 | 200 | 645 |
| GZ5 | 100 | 140 | 150 | 1.75 | 220 | 0.65 | 656 | 1815 | 1200 | 465 | 1050 | 250 | 765 |
